Patek Philippe Replica Movements: Every Calibre Compared

Technical Guide • 8 Sections

The movement inside your watch decides its accuracy, power reserve, service life and how convincing the caseback looks when someone turns it over. A Patek Philippe replica movement is one of four main types, and the types differ in thickness, in whether the seconds hand stops for setting, and in how they look through a display back. This guide compares them, using the specifications of each calibre and the accuracy figures of our quality tiers.

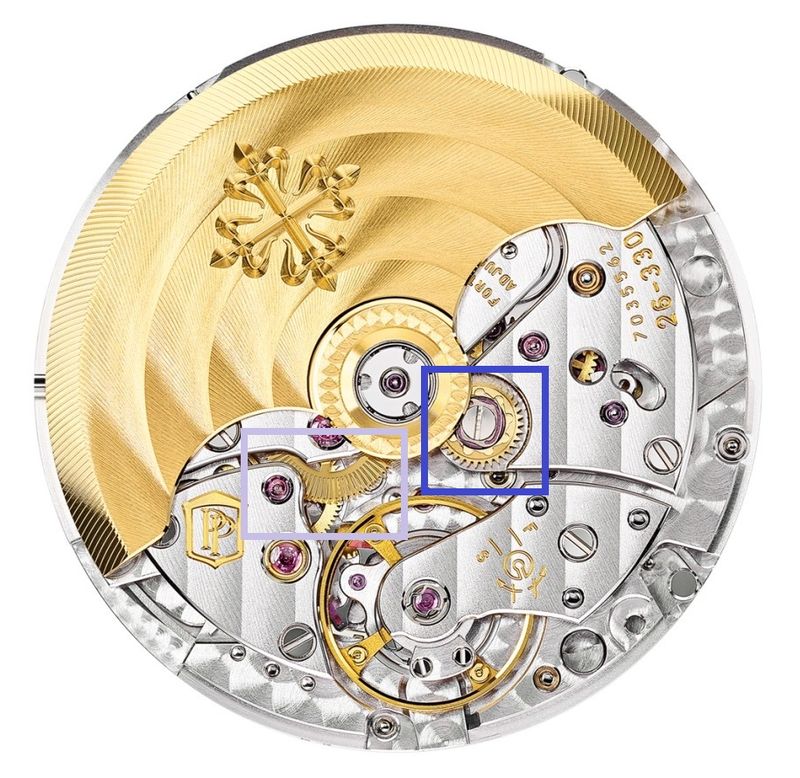

Patek Philippe caliber 26-330 SC movement close up

Quick Navigation

01. Patek Philippe Calibres Explained

02. 324 SC-Type Movement: The Standard

03. 26-330 SC-Type Movement: The New Generation

04. Miyota 9015: The Workhorse

05. Asian 2824 and Other Bases

06. Master Comparison Table

07. Service and Maintenance

08. Frequently Asked Questions

This guide covers every movement found in Patek Philippe replicas, from the 324 SC-type movement in the most detailed watches to the Asian 2824 in entry-level pieces. If you are choosing between a Nautilus and an Aquanaut, the movement matters as much as the case.

1

Patek Philippe Calibres: What the Replica Movements Reproduce

Patek Philippe manufactures every movement in-house at its Plan-les-Ouates facility in Geneva. Unlike brands that buy movements from ETA or Sellita, Patek designs, produces, finishes, assembles and tests every calibre under one roof. That is the basis of the reputation of its movements, and the reason they are so hard to reproduce accurately.

Patek Philippe 324 SC automatic movement with gold-tone rotor, engraved cross and striped bridges

Three caliber families power the models that replica buyers care about most:

  • Caliber 324 SC: the automatic workhorse. Used in Nautilus 5711, Aquanaut 5167, and many Calatrava references. 3.3mm thin, 28,800 bph, no hacking seconds, Gyromax balance, 35-45 hour power reserve.
  • Caliber 26-330 S C: the successor to the 324 S C, now used in the Nautilus 5811 and current Aquanaut models. Similar size, with a stop-seconds function for precise time setting. This is the current generation.
  • Caliber CH 28-520 C: the flyback chronograph used in Nautilus 5980 and Aquanaut 5968. Column-wheel, vertical clutch, single button flyback reset.

Fact: The Patek Philippe Seal requires every movement to be accurate to -3/+2 seconds per day across all positions and temperatures. Patek introduced its own Seal in 2009, replacing the Geneva Seal on its watches.

2

324 SC-Type Movement: The Standard for Patek Philippe Replicas

The 324 SC-type movement is the most important movement in this segment. It follows the original calibre’s dimensions, 3.3 mm high and 27 mm across, so it fits cases designed to be slim. That matters because the Nautilus 5711 and Aquanaut 5167 are famously thin watches: put a thicker movement inside and the caseback sits proud, the overall height changes, and anyone who has worn the original will notice.

Tip: you can ask us for a timegrapher reading with your QC photos before the watch ships. It shows the rate, amplitude and beat error of your own watch.

The 324 SC-type movement reproduces the original’s rotor design. Through a display back it looks right: Geneva stripes on the bridges, perlage on the base plate and a gold-tone rotor with the Calatrava cross. Accuracy depends on the tier: our SuperClone runs within -5/+6 seconds a day and AAA within ±10 seconds.

Patek Philippe Gyromax balance wheel with gold weights

Replica makers differ most in finishing. The better 324 SC-type movements show even Geneva stripes, deep perlage and a balance with clean weight inserts; weaker ones have wider stripes and shallower perlage under magnification. Which maker built a particular watch depends on the model and the batch.

Tip: like Patek’s caliber 324, the 324 SC-type movement has no hacking seconds. A watch described as having a 324-type movement whose seconds hand stops is usually a Miyota 9015 with a decorative plate. That is not a bad movement, as the Miyota is reliable, but it is a different one.

You can see these calibres in our shop through the Nautilus and Aquanaut they belong to: the time-only Nautilus 5711/1A-010 with the blue dial, the Aquanaut 5167A-001 on its black rubber strap and, for the 26-330 generation, the Nautilus 5811/1G-001 in a white-tone case. The flyback chronograph calibre from the section above lives in the Nautilus 5980/1A-011 chronograph with the blue dial. Every model is in our Nautilus range. On Patek’s side, the round Twenty~4 Automatic uses the caliber 324 S C as well; in our women’s range it is the Twenty-4 7300/1200A-001 with a blue dial.

3

26-330 SC-Type Movement: The New Generation

Patek Philippe introduced caliber 26-330 S C as the successor to the 324: it adds a stop-seconds function, so pulling the crown stops the balance for precise time setting. It now powers the Nautilus 5811. Replica versions of this calibre are newer than the 324 type and are used on the latest references.

Patek Philippe caliber 26-330 SC movement finishing

The 26-330 SC-type movement keeps the slim size and adds a working stop-seconds lever: pull the crown and the balance stops cleanly. The bridge decoration follows Patek’s updated pattern. Power reserve across our automatics is 40-48 hours.

4

Miyota 9015: The Reliable Workhorse

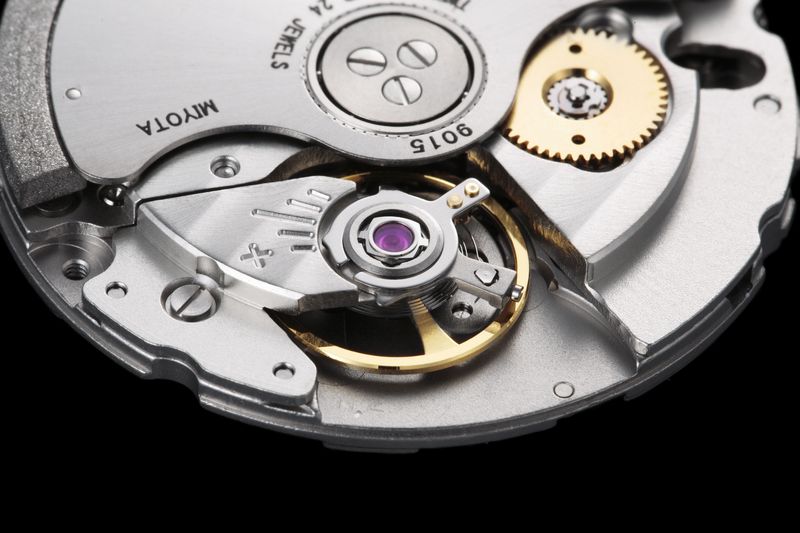

Miyota 9015 movement with custom decoration for replica watches

The Miyota 9015 is a Japanese-made automatic movement produced by Citizen’s movement division. It is its own design, a mass-produced calibre used by hundreds of watch brands worldwide, and in Patek-style watches it is the reliable alternative to Chinese-made movements.

Insight: the Miyota 9015 beats at 28,800 vibrations per hour, the same rate as Patek’s automatic calibres, which is one reason it is so widely used. Its rotor is audibly louder than Patek’s.

The 9015 runs at 28,800 bph, the same as Patek, has hacking seconds and 42 hours of power reserve, and is known for running for years between services. The trade-off: it is 3.9 mm thick, thicker than Patek’s caliber 324, and it does not look like a Patek movement through the caseback. Some makers add a decorative plate over the Miyota that mimics the Patek rotor and bridges.

The Miyota 9015 is a common choice in Aquanaut and Nautilus watches of this kind. The extra 0.6 mm over the 324 is hard to see on the wrist, the movement is easy and inexpensive to replace if it ever fails, and it keeps good time out of the box. If reliability matters more to you than the view through the caseback, it is the practical choice.

5

Asian 2824 and Other Base Movements

The Asian 2824-2, also sold as the “Sea-Gull 2824”, is a Chinese-made movement based on the ETA 2824-2. It is the least expensive automatic used in Patek replicas. At 4.6 mm thick it makes the case noticeably thicker than Patek’s, and its accuracy and power reserve vary from batch to batch.

The Asian 2824 is found in the lowest-priced Patek-style watches sold on marketplaces, and some makers use it in entry-level lines. For a watch known for its slim profile it is a poor fit, because the extra thickness works against the design. The Miyota 9015 is the sensible minimum.

Other movements that appear occasionally: a Hangzhou 2892-based movement used in some complications, the Dandong DG series, and Chinese chronograph calibres based on the 7750. For Patek complications such as the annual calendar (5726) or dual time (5164A), makers usually add a complication module to a base automatic.

Automatic movement on a green workshop holder, striped bridges and gold-tone rotor edge

6

Master Comparison: Every Patek Philippe Replica Movement

Movement Height BPH Power Hacking Accuracy Caseback Look
324 SC-type 3.3mm 28,800 40-48h No varies by tier Excellent
26-330 SC-type 3.3mm 28,800 40-48h Yes varies by tier Excellent
Miyota 9015 3.9mm 28,800 42h Yes varies Good (w/ plate)
Asian 2824-2 4.6mm 28,800 varies Yes varies by batch Poor
Patek 324 S C 3.3mm 28,800 35-45h No -3/+2s Reference

7

Service and Maintenance: Keeping the Movement Running

Every mechanical movement needs periodic service. Patek Philippe gives its own service intervals for its calibres; for our watches the team recommends a service every 2-3 years, and the details depend on the movement type.

Watch movement service and repair tools

324 SC / 26-330 SC type

  • Service: every 2-3 years
  • Most watchmakers can service
  • Parts: harder to source
  • Regulation: ±5-8s achievable
  • Common issue: rotor bearing wear

Miyota 9015

  • Service: every 2-3 years
  • Any watchmaker can service
  • Parts: widely available
  • Regulation: ±5s achievable
  • Full replacement: very affordable

Asian 2824

  • Service: annually recommended
  • Any watchmaker can service
  • Parts: inexpensive, widely available
  • Regulation: about ±10s
  • Often less expensive to replace than to repair

One practical advantage of the Miyota 9015: if it fails completely, a watchmaker can fit a new one at little cost. A 324 SC-type movement is harder to replace, because parts are harder to find. That is why many owners pick the Miyota for a daily watch. Our guide to Patek Philippe replica factories explains which makers favour which movements.

8

Frequently Asked Questions

Which Patek Philippe replica movement is the most reliable?

The Miyota 9015 is the most reliable of the four types. It is factory-made in Japan with consistent quality control. The 324 SC-type and 26-330 SC-type movements look more like Patek’s through the caseback, but their parts are harder to source.

Can a watchmaker tell a replica movement from a Patek calibre?

Yes, within minutes. Finishing, materials, jewels and machining all differ from Patek’s calibres. A replica movement looks right through the caseback, not under a watchmaker’s loupe.

Does the 324 SC-type movement have the same power reserve as Patek’s?

Close to it. Patek quotes 35-45 hours for the caliber 324 S C, and our automatic replicas run 40-48 hours. Real-world power reserve varies slightly from one watch to another.

Is a decorated Miyota as good as a 324 SC-type movement?

Functionally, the decorated Miyota is more reliable. Visually, it is a step behind. The decorative plate added over the Miyota simulates the Patek rotor and bridge design, but the depth and angle of the decoration do not match a purpose-built 324 SC-type movement. If you rarely flip your watch over, the Miyota is the smarter choice.

What movement does Patek Philippe’s Nautilus 5811 use?

The Nautilus 5811/1G uses caliber 26-330 S C, the successor to the caliber 324 S C, with a stop-seconds function and Patek’s Spiromax silicon balance spring.

Can I swap a Miyota for a 324 SC-type movement later?

In theory yes, but it takes a skilled watchmaker who works with replica movements: the movement holder and the dial feet may not match. It is simpler to choose the movement type you want when you order.

Choose the Movement That Matches Your Priorities

The right movement depends on what you value most: a 324 SC-type or 26-330 SC-type movement for the best view through the caseback, the Miyota 9015 for reliability and easy servicing, and the Asian 2824 only if the lowest price matters more than a slim case. All of them keep time; they differ in how long they last, how accurately they run and how they look from the back.
